Veranda Post Mounts

There are two reasonable ways of looking at the bottom of a veranda post, and they pull in opposite directions. From a garden chair a metre away it is a visible detail — a plate, four bolt heads, perhaps a collar hiding all of it — and people judge it on whether it looks tidy against the paving. Structurally it is the single connection tying the whole structure to the ground, and the joint that has to hold when a gust tries to lift the roof off. It has less material in it than almost anything else in the structure and more asked of it, which is a good reason not to treat it as trim.

At Roma Verandas the post mount is specified alongside the foundation rather than after it, because each decides the other. This guide covers the methods in common use — bolt-down base plates, cover shrouds, sunken posts cast into concrete, adjustable feet, ground screw adapters and fixings into decking — and what each means for appearance, water, corrosion, serviceability and uplift.

What the Joint Is Actually Resisting

Downward load is the easy part. The demanding cases are uplift and overturning, and both act on the bolts rather than on the concrete. Overturning is the more interesting one, because the post works as a lever. Wind pressing on a side screen applies a horizontal force somewhere up the post, and a base plate perhaps a hundred and fifty to two hundred millimetres across has to resist the resulting rotation using a bolt group smaller still. The lever arm resisting it is a fraction of the lever arm applying it, so a modest push near the top of a two-and-a-half-metre post becomes a much larger tension in the two bolts on the windward side.

Two things follow. Widening the bolt spacing helps disproportionately, which is why a small neat plate is not automatically a better one. And the concrete has to be sized for the anchors rather than for the plate: manufacturers specify minimum edge distances, often several times the bolt diameter, so a pad only slightly wider than the plate is marginal rather than generous. That is one of the arguments for a properly formed concrete foundation under each post rather than an attempt to make existing paving do the job.

Bolt-Down Plates and Cover Shrouds

This is the default and, for most gardens, the right answer. The post either arrives with a plate welded to its foot or drops over a spigot forming part of the plate, and the plate is fixed with four anchors, usually resin anchors drilled once the pad has cured. Drilling after the frame has been offered up and squared is far more forgiving than casting bolts into wet concrete against a template. The joint can be shimmed to bring a post plumb, inspected years later by looking at it, and unbolted if a post is ever damaged.

Against that, it is the most visible option, and after a few winters the fixings collect the sort of grey staining nobody minds much but everyone notices. Plate thickness matters too: a thin plate flexes and lets the bolt work in bending rather than pure tension, the condition anchors are least good at, so eight to twelve millimetres is typical. A plate should also never be tightened onto an uneven surface, because a gap under one corner means it rocks and every gust works the bolts. The fix is non-shrink grout or a solid full-width shim, not washers stacked under one corner.

A cover shroud is a colour-matched skirt that slides down the post over the plate, hiding the fixings entirely. On an anthracite frame against pale paving it makes a real difference to how resolved the base looks. Two caveats. It conceals precisely what you would want to look at occasionally, so it should lift off without cutting sealant. And it must not be siliconed down to the paving: sealed at its base it becomes a small vessel that fills by driving rain with no way of emptying, keeping the plate permanently damp.

Sunken Posts and Cast-In Details

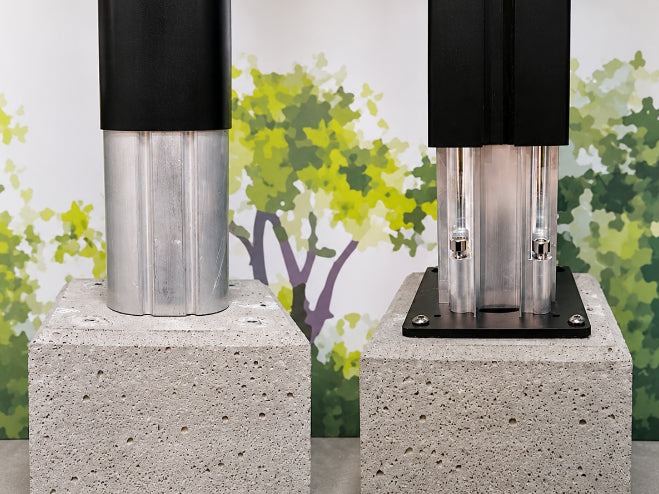

Setting the post itself into concrete, so the section continues below patio level with no visible plate or fixing, gives the cleanest appearance available and the stiffest base condition. Fixity at the foot reduces how much the rest of the frame has to do in resisting sway, a genuine benefit on exposed sites, on tall carport posts and on freestanding structures where no wall is helping.

The reasons it is not the default are worth stating plainly. Fresh concrete is strongly alkaline and aluminium does not tolerate prolonged contact with it, so the buried section needs isolating with a sleeve, a bituminous coating or a wrapped membrane; skimp that and the interface pits slowly and invisibly. There is no adjustment, because once the concrete has gone off the position is permanent, and a damaged post becomes a matter of breaking out concrete rather than undoing four bolts. It is a good detail chosen deliberately for the right site, and a poor one chosen because it photographs neatly.

Adjustable Feet, Screw Adapters and Decking

Adjustable feet put a threaded stem between post and plate, typically offering twenty to fifty millimetres of levelling. On a patio with a pronounced fall this saves cutting posts to four different lengths. The thing to understand is that the thread is now the load path: a foot wound out close to its limit has far less lateral stiffness than one nearly closed, so the sensible use is fine adjustment rather than making up a large difference, with the void beneath grouted solid once the frame is set.

Ground screws take a flanged head or a separate adapter plate, sometimes with an adjustable top section. Uplift capacity comes from the screw itself, so the connection above it is usually straightforward — but screws rarely land in perfect alignment, and slotted adapters matter more here than on a cast pad. It is better to accept that a screw will be a few millimetres out and let the connection absorb it than to force a rigid plate onto it.

Decking deserves a firmer answer than it usually gets. A timber deck substructure is designed to carry people and furniture downward; joists at four hundred centres are not a foundation and offer essentially nothing against uplift. The right arrangement is almost always for the post to pass through the decking to its own pad or screw below, with the boards cut neatly around it and left free to move. Where a post genuinely must bear on the deck it needs solid blocking between joists, a spreader to distribute load, and fixings reaching something anchored to the ground — and even then it is a compromise.

Water, Corrosion and the Long View

Aluminium does not rust, which leads people to assume the base of a post is indifferent to water. Not quite. Standing water in contact with a plate, particularly where a stainless anchor passes through an aluminium one, sets up a mild galvanic couple; the effect is slow and usually cosmetic, but coastal locations accelerate it, and nylon isolating washers are cheap insurance. What matters more is not letting water sit. The patio should fall away from post positions rather than towards them, and a post standing in a shallow hollow will eventually show a white oxide bloom around the plate.

Where posts carry the rainwater downpipe internally, the base becomes a drainage detail as well as a structural one. There is an outlet at or near the foot and it has to discharge somewhere sensible — a channel, a gully or a soakaway. A concealed downpipe that quietly empties onto the paving at the foot of its own post keeps that base wet after every shower, which is the one condition everything above is trying to avoid. It is not difficult to get right; it simply has to be decided when the post positions are, rather than when the frame is already standing.

A Detail You Should Not Have to Worry About

For most installations none of this requires a decision from the customer. A bolt-down plate on a properly formed pad, shimmed level, grouted solid and finished with a colour-matched shroud is the right answer, and there is nothing to agonise over. The cases worth thinking about are the exceptions: decking, exposed or coastal sites, carports where a vehicle might one day meet a post, and gardens where the paving is staying and the fixings will be on show.

If any of those describe your garden it is a short conversation, and a more useful one at survey stage than afterwards, because almost all of it is fixed by the time the frame is made. We would rather tell you that a post ought to pass through your new decking than find a way of standing it on top — and if that answer is unwelcome, it is at least better delivered before anything is ordered.
